- 【Function】TRS 3.5mm solder type panel mount audio connectors easily realize the input/output configuration of 3.5mm audio system and provide stable audio signal transmission environment.

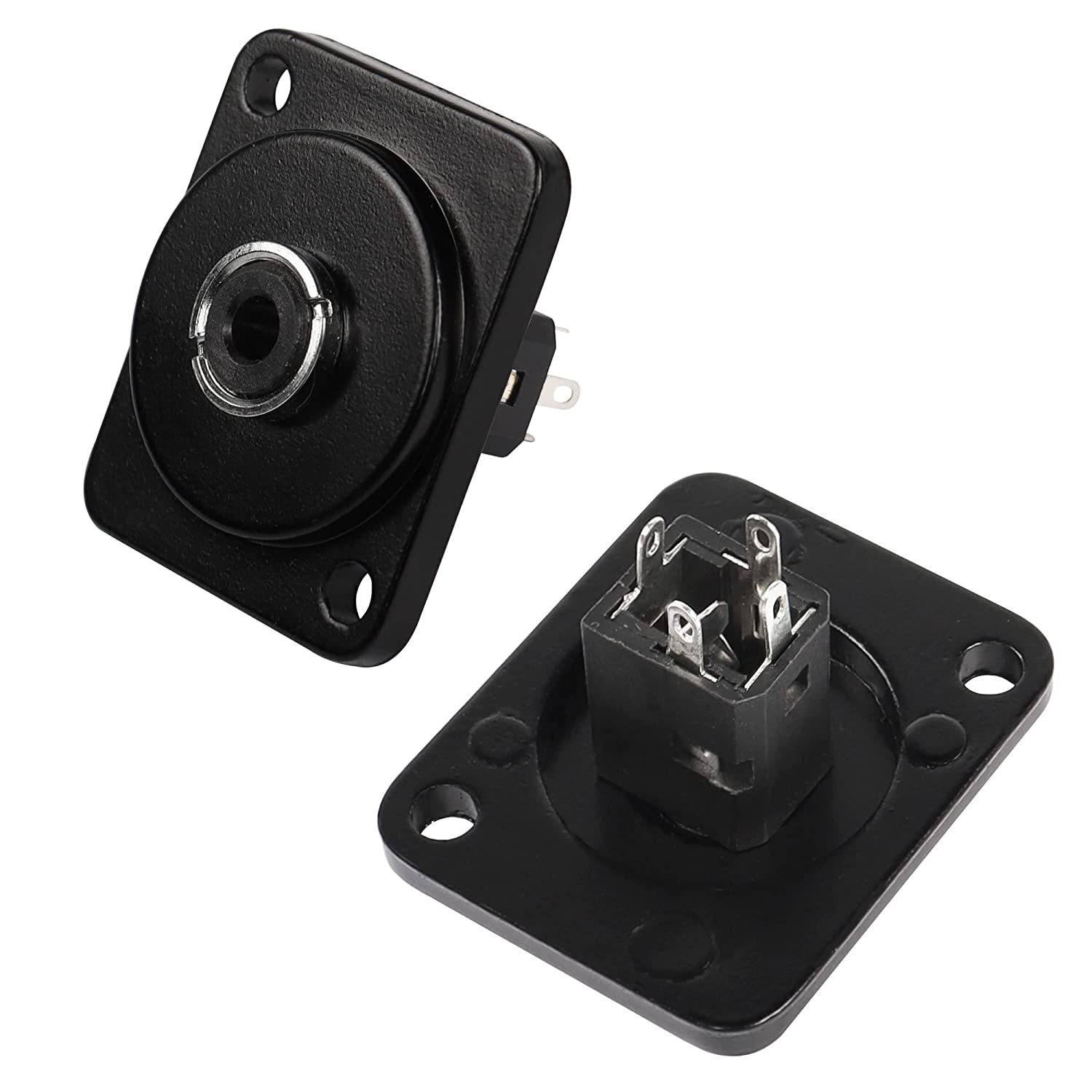

- 【Wiring】TRS 1/8 stereo solder type panel audio connector, 3 solder pin hole, respectively solder the input (speaker / mixer) of the left channel, right channel, and ground. The other 1 solder pin hole for normally closed end, when inserted into the headphones, the contact is broken, only headphones have sound.

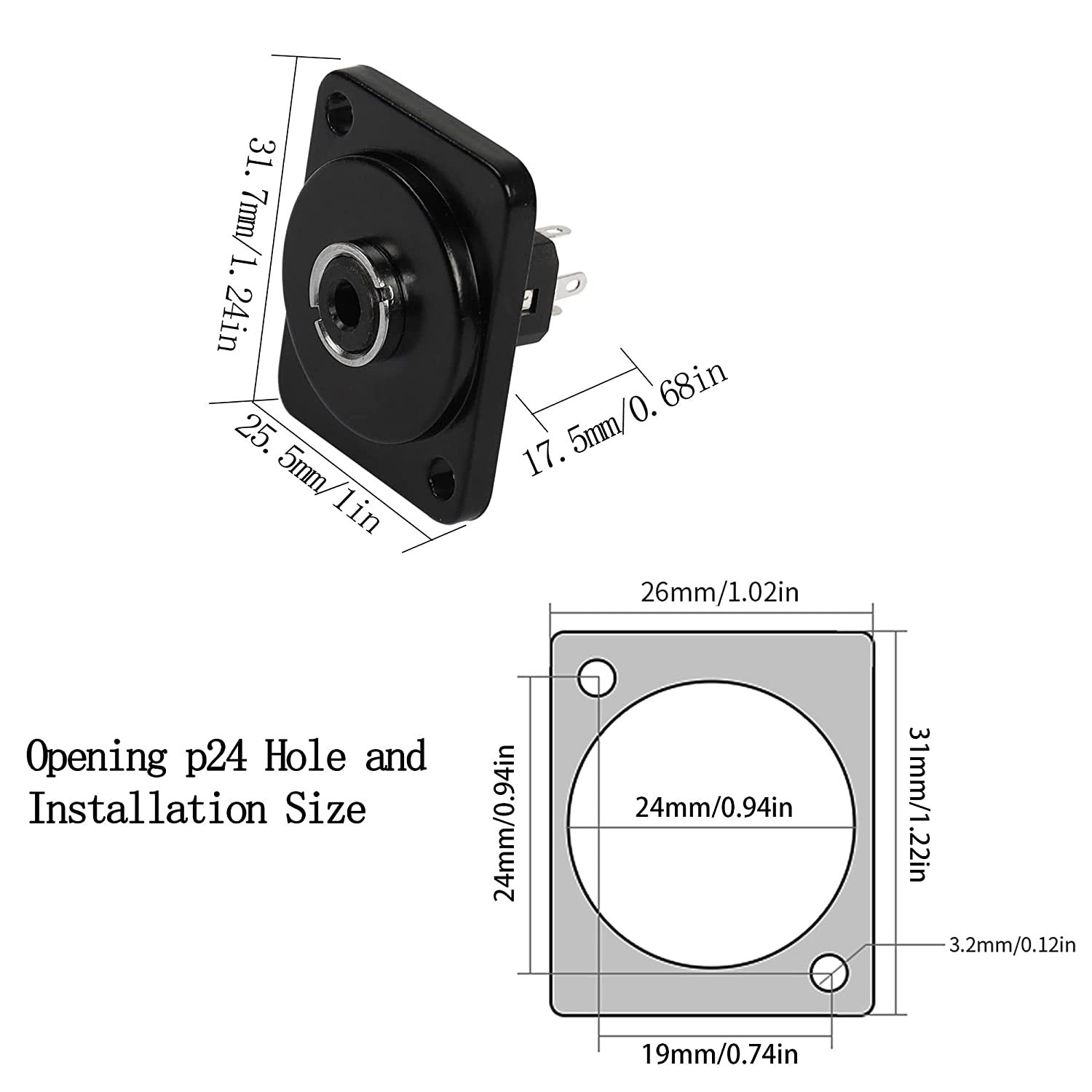

- 【Usage occasion】 TRS 3.5mm solder type panel mount stereo receptacle is suitable for industrial and entertainment applications that require audio connection through a rack panel. Can be mounted on XLR panel/D-type panel with φ24mm round hole. Suitable for fixing to walls, desktops, equipment panels, racks, etc.
- 【Exposed/Concealed】 TRS 1/8 welded panel mount socket can be exposed or concealed in panels with φ24mm openings.
- 【Reliable and Durable】 3.5mm solder type audio socket with sturdy zinc alloy die-casting housing ensures durability to meet special needs under certain harsh conditions.
Interface A: TRS 1/8 (3.5mm) female connector
Interface B: 4 solder foot holes
Material: copper, PVC, zinc alloy housing
Space size: 31*26*22mm (1.22*1.02*0.87in)
Color: Black
